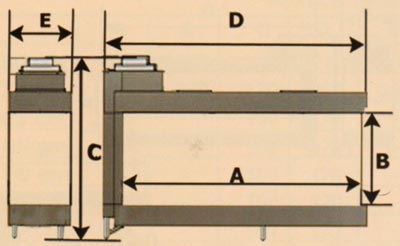

Model	A	B	C	D	E	∅	kW Pro.	kW Nat.
700EE	700	420	717	909	395	130/200	9.3	9.3
750EH	750	420	870	850	440	100/150	4.3	6.0

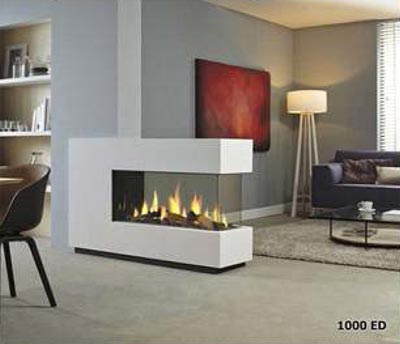

1000ED	1000	410	815	1392	434	130/200	9.4	9.6
1200EH	1250	420	870	1353	440	130/200	5.2	6.8
1400EE	1386	422	834	1532	394	130/200	7.5	9.5
1500EH	1500	424	870	1656	438	130/200	7.8	9.1
2000EH	2044	424	870	2144	438	130/200	9.3	10.8

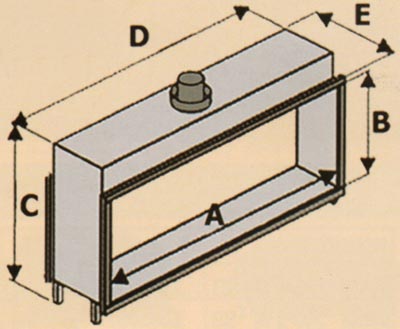

Model	A	B	C	D	E	∅	kW Pro.	kW Nat.
80ED	800	330	820	968	434	100/150	5.9	5.6
100ED	1000	390	818	1247	470	130/200	9.4	9.6
130ED	1300	390	857	1500	431	130/200	10.6	10.8
150ED	1500	400	990	1686	434	130/200	11.0	10.8
170EH	1700	384	690	1784	428	130/200	7.8	9.1

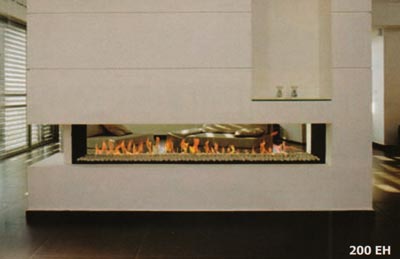

200EH	2000	384	690	2064	428	130/200	9.3	10.8
240EE	2376	375	1086	2656	414	130/200	15.0	15.0
Vision Tunnel	814	672	921	1084	319	100/150	7.4	8.3
Vertical Tunnel	700	1597	1911	928	414	100/150	9.9	9.9

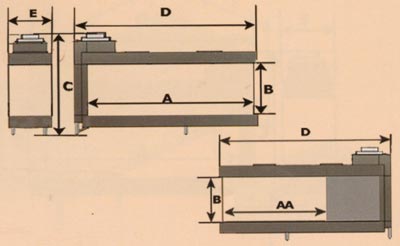

Model	A	B	C	D	E	AA	∅	kW Pro.	kW Nat.
1000XTL	1000	410	815	1390	434	350	130/200	9.4	9.6

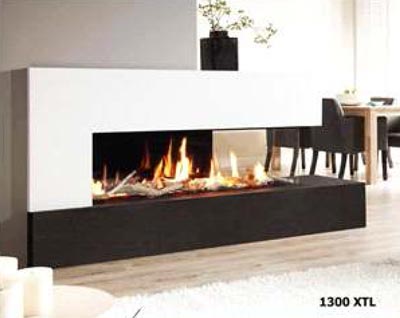

1300XTL	1301	390	950	1350	448	449	130/200	10.6	10.8
1400XTL 1/3	1386	422	834	1532	394	486	130/200	7.5	9.5
1400XTL 2/3	1586	422	834	1532	394	916	130/200	7.4	9.5
360 All Vision	703	420	717	803	395	703	130/200	9.3	9.3

Model	A	B	C	D	E	A’	A”	∅	kW Pro.	kW Nat.
Danta 500-4W	503	366	700	396	440	–	14	100/150	5.1	5.1
Danta 500-5W	503	366	700	396	440	14	14	100/150	5.1	5.1
Danta 800-4W	852	366	700	396	440	–	25	100/150	6.8	6.8
Danta 800-5W	852	366	700	396	440	25	25	100/150	6.8	6.8
Danta 1100-4W	1152	366	700	396	440	–	35	130/200	8.8	8.8
Danta 1100-5W	1152	366	700	396	440	35	35	130/200	8.8	8.8
Danta 1400-4W	1452	366	700	396	440	–	40	130/200	10.5	10.5
Danta 1400-5W	1452	366	700	396	440	40	40	130/200	10.5	10.5

Room Dividers, Tunnels and Special Fires
